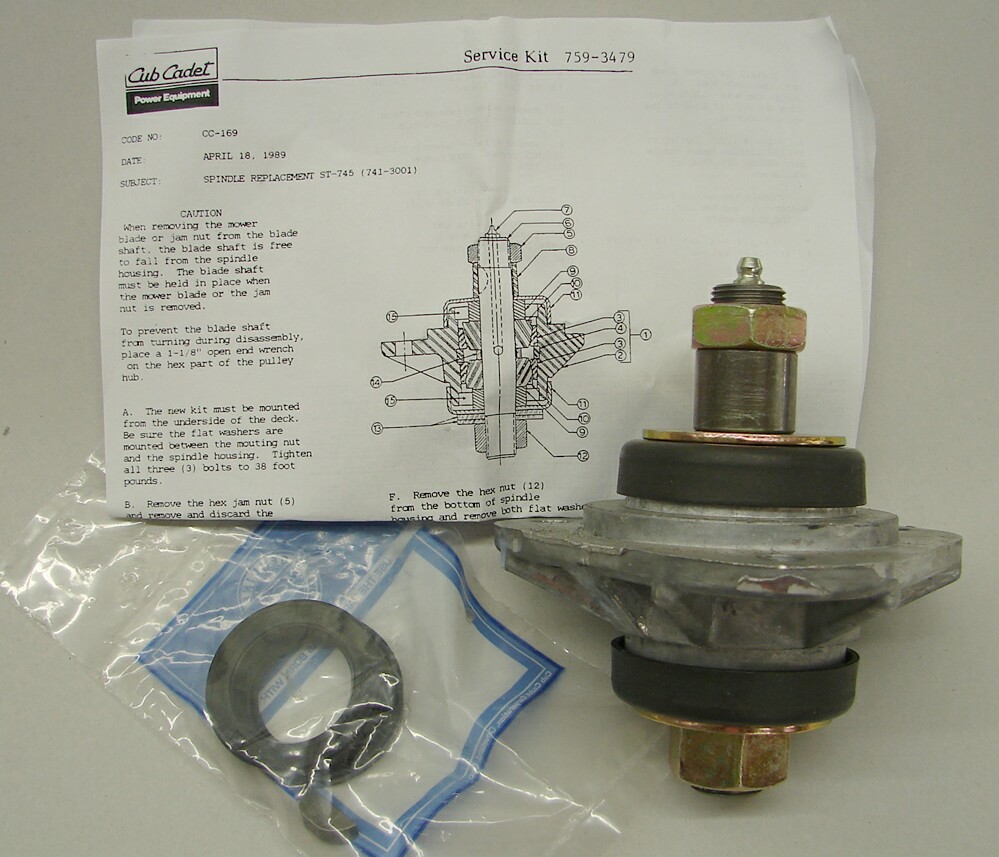

Spindle Assembly W/O pulley PN/ 741-3001 IH-ST721 759-3479 959-3479 USE 759-3479P Spindle Assembly W/O pulley PN/ 741-3001 IH-ST721 759-3479 959-3479 USE 759-3479P

This assembly replaces the old style that took the ST745 bearing

Fits 38, 38A, 42, 44, 44A, 44C, 50, 50A 50C  decks.

$252.00

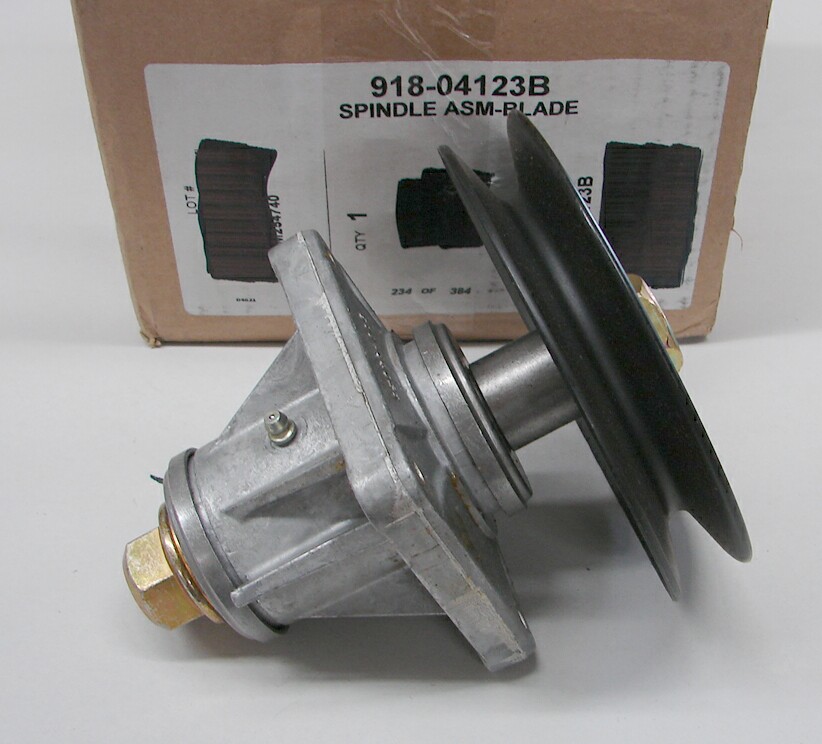

MTD Cub Mower Deck Spindle Assembly  PN/ 618-04123B USE 918-04123B

Fits  LT1022 Tractor, 13AB11CH710, 13AB11CH712
LT1045 Tractor (2007 & before), 13AX11CH710, 13AX11CH712, 13AX11CH709, 13AX11CH756,
13BP11CH710, 13BP11CH709, 13BP11CH756, 13RX11CH756
LT1046 Tractor (2007 & before), 13AP11CH710, 13AP11CH709

$134.79

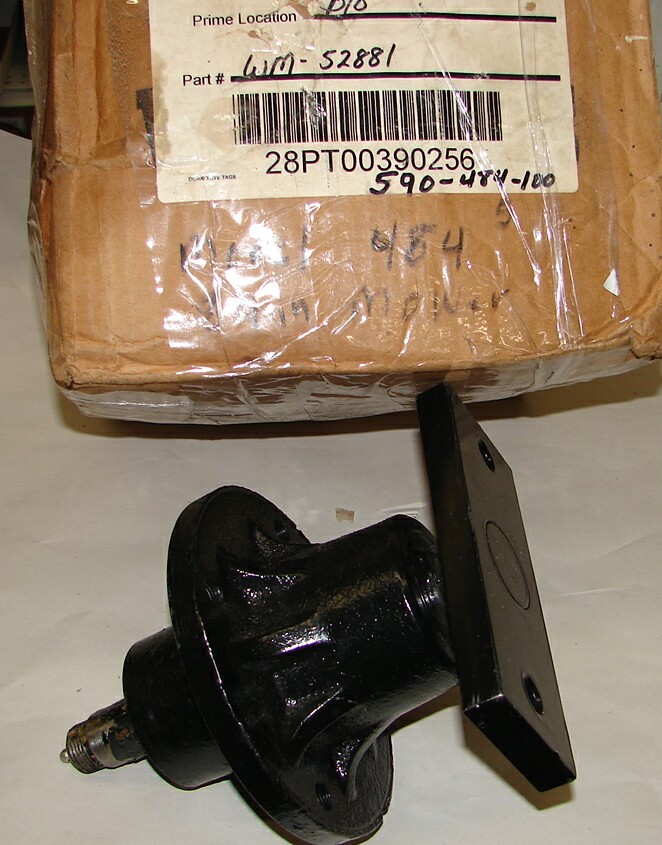

NOS Spindle Assembly W/O pulley PN/ WM-52881 One in stock

Fits 483 72" Rear Mount Mower, 590-483-100
484 84" Rear Mount Mower, 590-484-100

$269.12

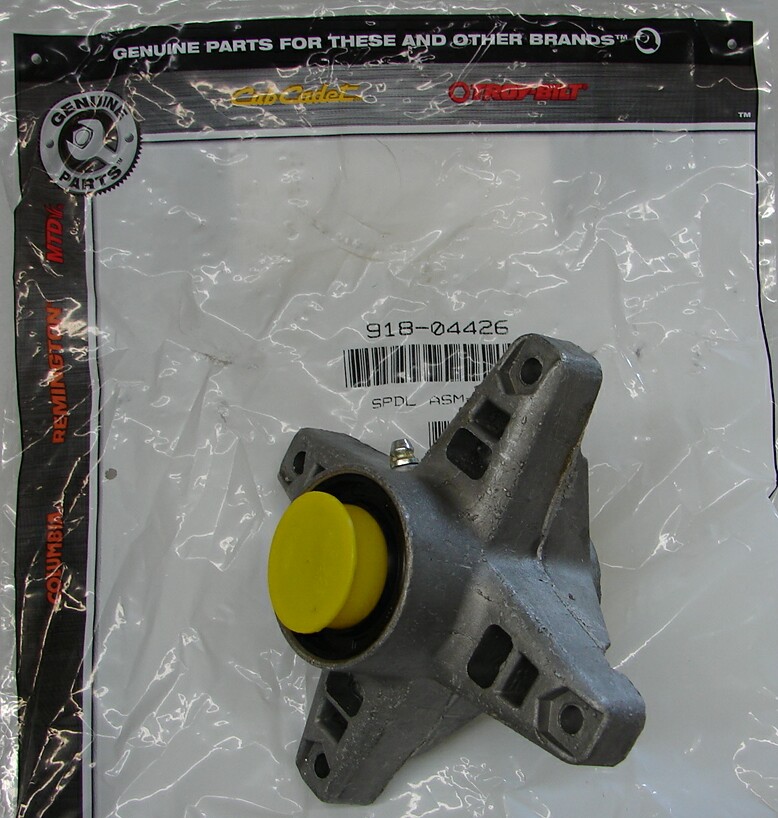

Mower Deck Spindle Assembly  PN/ 618-04394 or 918-04394 USE 918-04426

Fits Enforcer Tank and Z Force machines

$79.48

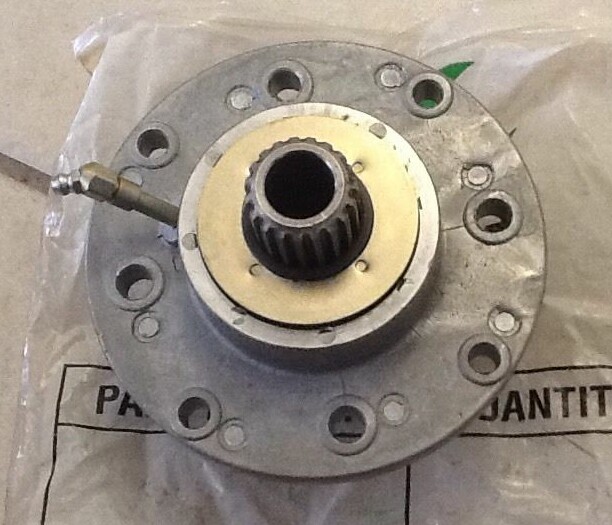

NOS Blade Spindle Assembly  PN/ 02000920 02000920A 02000920P USE 918-05132

 Fits

M72-CT (53AL8CT8050) (Tank) 28 HP Caterpillar 3-Cylinder OHV Diesel, 53AL8CT8050
M72-CT (53AL8CTZ750) (Tank) 28 HP Caterpillar 3-Cylinder OHV Diesel, 53AL8CTZ750
M72-GN33 (53BB5FJZ750) (Tank) 33HP Generac Guardian V-Twin OHV, 53BB5FJZ750
M72-GN33 (53CB5FJZ750) (Tank) 33HP Generac Guardian V-Twin OHV, 53CB5FJZ750
M72-KW (53AI8CT8050) (2009 & Before) (Tank) 37HP Kawasaki V-Twin OHV, 53AI8CT8050 (2009 & Before)
M72-KW (53AI8CT8050) (2010) (Tank M) 37HP Kawasaki V-Twin OHV, 53AI8CT8050
M72-KW (53AI8CTZ750) (Tank) 37HP Kawasaki V-Twin OHV, 53AI8CTZ750
M72-KW (53BI8CT8050) (2011 & After) (Tank M) 37HP Kawasaki, 53BI8CT8050
S7232-D (53AY8DU8050) (Tank S) 31.2HP Yanmar Diesel, 53AY8DU8050
S7232-D (53BY8DU8750) (Tank S) 31.2HP Yanmar Diesel, 53BY8DU8750
S7237-KW (53AI8DU8050) (Tank S) 37HP Kawasaki, 53AI8DU8050
S7237-KW (53CI8DU8050) (Tank S) 37HP Kawasaki, 53CI8DU8050
S7237-KW (53DI8DU8050) (Tank S) 37HP Kawasaki, 53DI8DU8050
S7237-KW LP (53AP8DU8750) (Tank S) 999cc Kawasaki Liquid Propane, 53AP8DU8750
Tank LZ-48 (2012), 53AM2PTB050 (2012), 53AM2PTB250 (2012)
Tank LZ-54 (2012), 53AH2PTC050 (2012)
Tank LZ-60KH (2012), 53AH2PTD050 (2012)
Tank LZ-60KW (2012), 53AI2PTD050 (2012)
Tank SZ-48 (2012), 53AH2PUB050 (2012), 53AH2PUB250 (2012)
Tank SZ-60 (2012), 53AI2PUD050 (2012)

$0.00

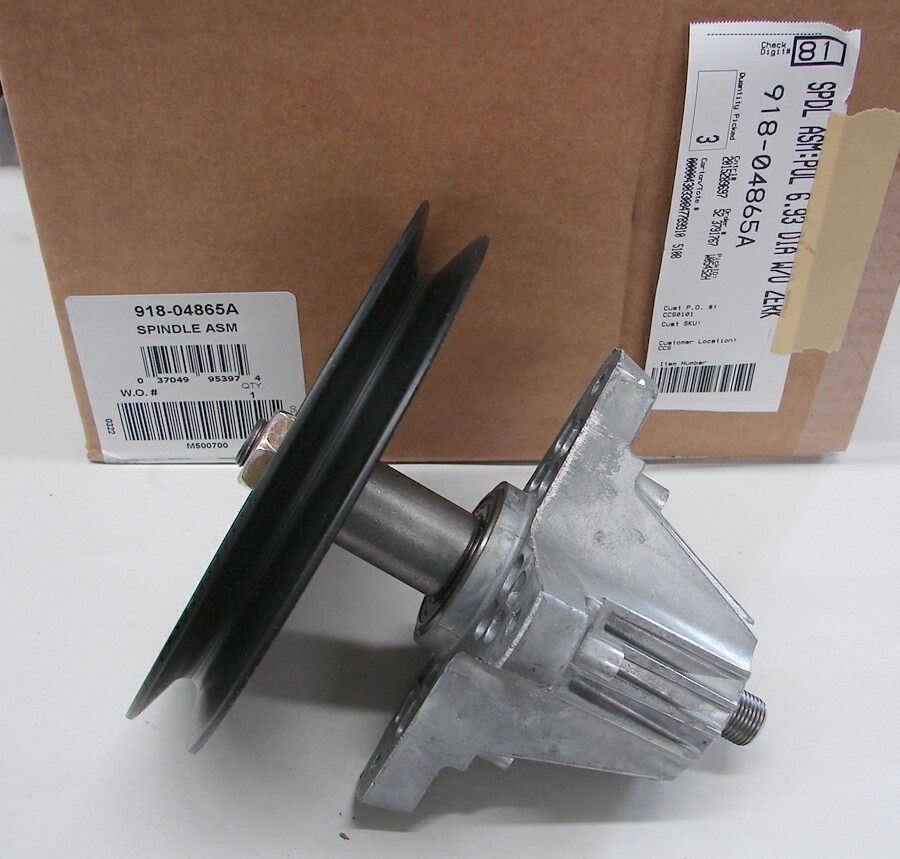

MTD Cub Mower Deck Spindle Assembly  PN/ 618-04865A 918-04636 918-04636A USE 918-04865A

6.93 Dia. Pulley

6 pt. star spindle shaft
Fits  LTX1042 LTX1045 LTX1046 LTX1046KW LTX1046M Z-Force S 46

$120.37

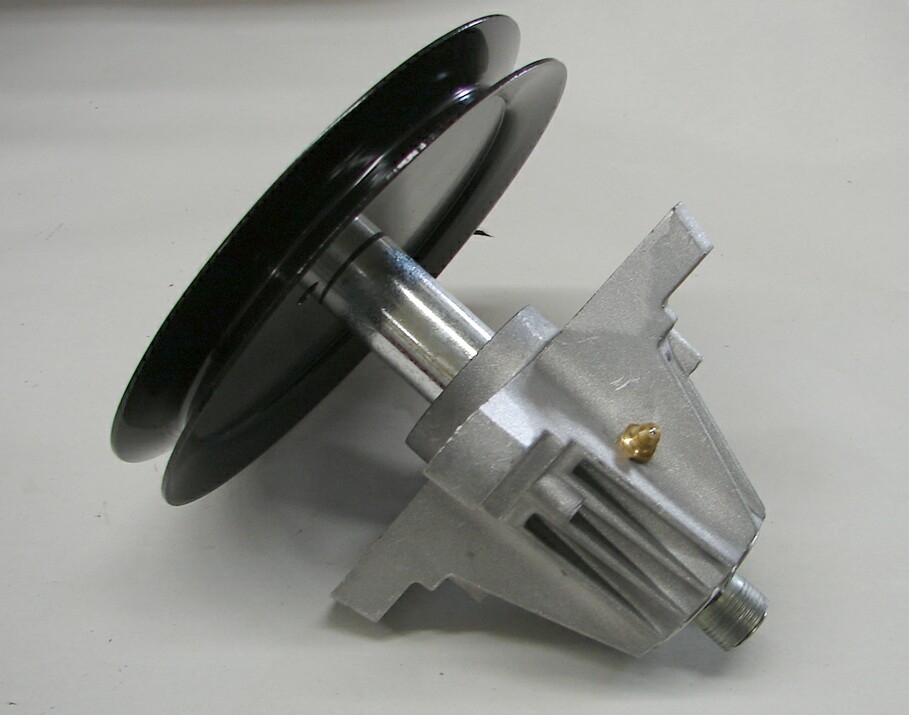

Cub Cadet AM Spindle Assembly  PN/ 618-04865A 918-04636 918-04636A USE 918-04865A

6 pt. star spindle shaft
Pulley and grease zerk included
No threads in housing, use self-tapping screws

6.93 Dia. Pulley

Fits  LTX1042 LTX1045 LTX1046 LTX1046KW LTX1046M Z-Force S 46

$99.73

PN/

$0.00

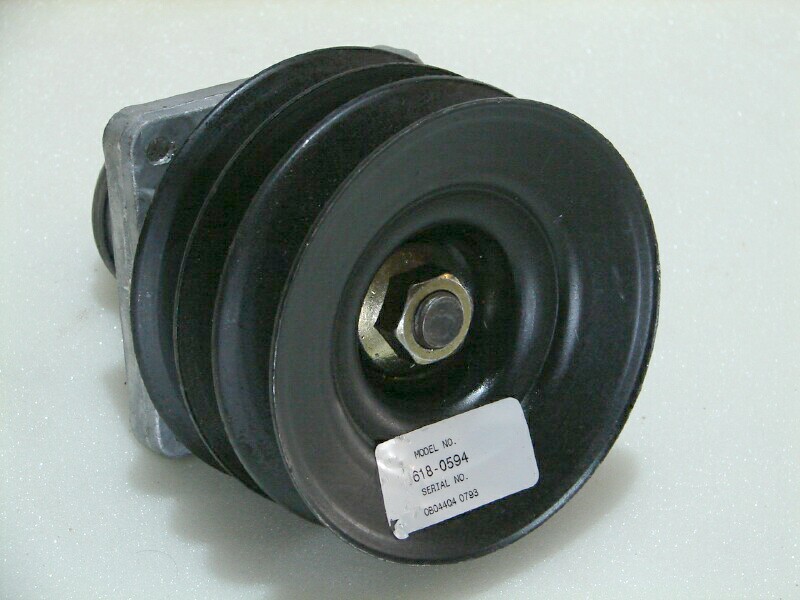

NOS Mower Deck Spindle Assembly W/ Pulley PN/ 618-0594 USE 918-0596C $146.14

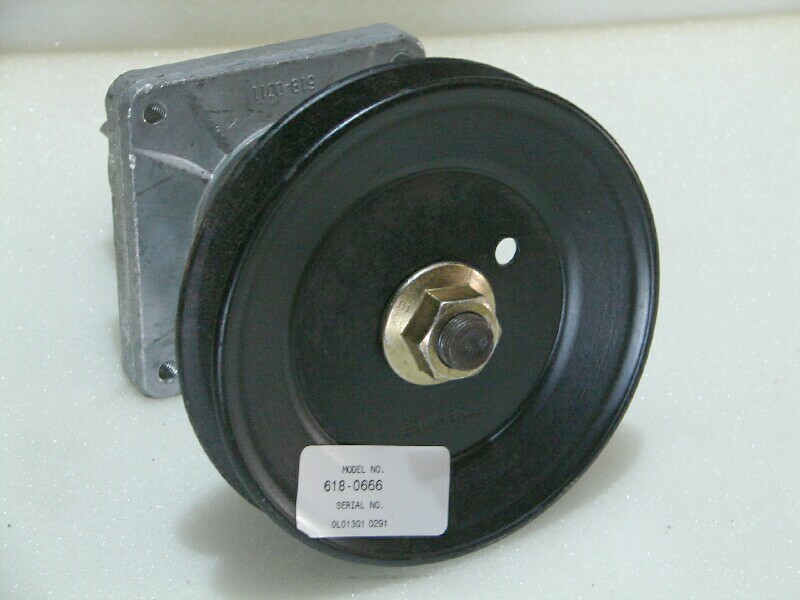

NOS Mower Deck Spindle Assembly W/ Pulley PN/ 618-0666 USE 918-0666A  $143.00

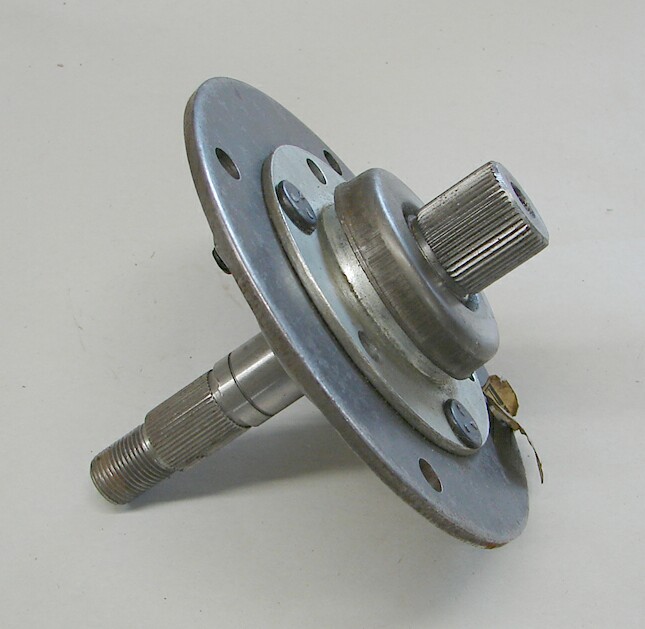

Spindle replacement kit PN/ 717-0906 717-0906A 917-0906 USE 753-05319

Fits

1106 (1988 HM), 138-519-100 (HM 1988)
1106 (1989 HM), 139-519-100 (HM 1989)
1208 (1990 HM), 130-552F100 (HM 1990)
1208 (1991 HM), 131-552F100 (HM 1991)
1238 (1992 HM), 132-552F100 (HM 1992)
1238 (1993 HM), 133I582F100 (HM 1993)

$85.61

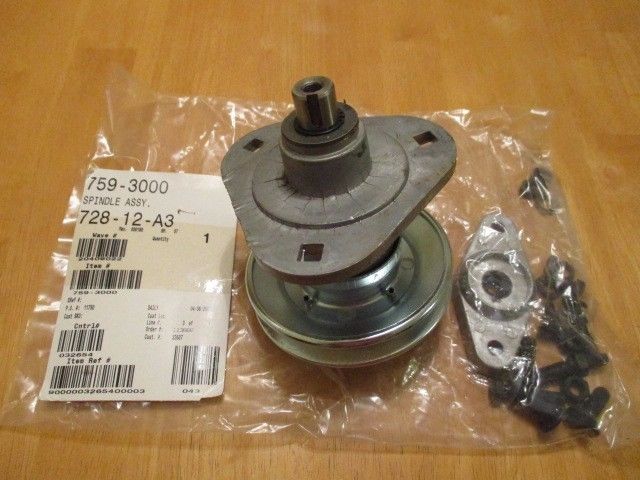

NOS Spindle Assembly W/ pulley PN/ IH-144391-C91 759-3000 USE 959-3000

Fits 76 80 81 111 182 282 382

$0.00

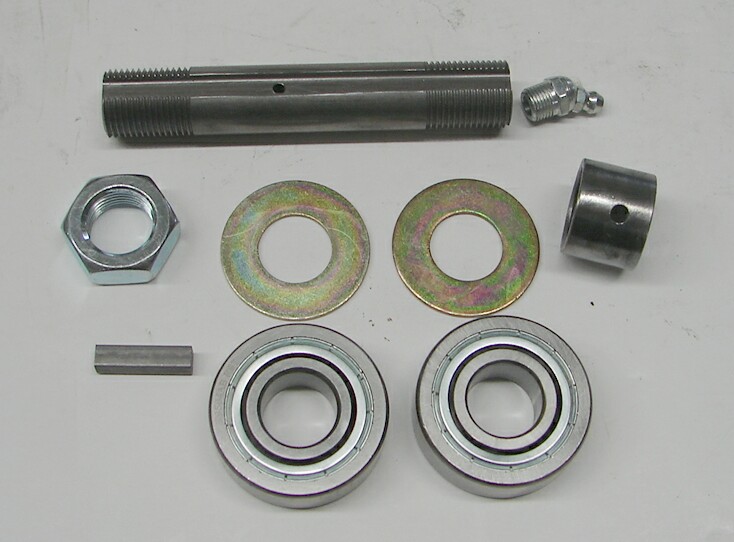

Spindle shaft and bearing service package P/N IH-470849-R91 or IH-464533-R1

Kit comes with washers and key the original kit did not have for $50.00 less money!

 Fits 38 inch IH made timed decks on Original 70 and 100

$132.00

NOS MTD 383 Deck Spindle Shield Left Side  PN/ IH-538859-R3 703-0387 USE 703-0387-0499

Fits 76, 80, 81, 111, 182, 282, 382 Gear AND 383 Hydro

$68.00

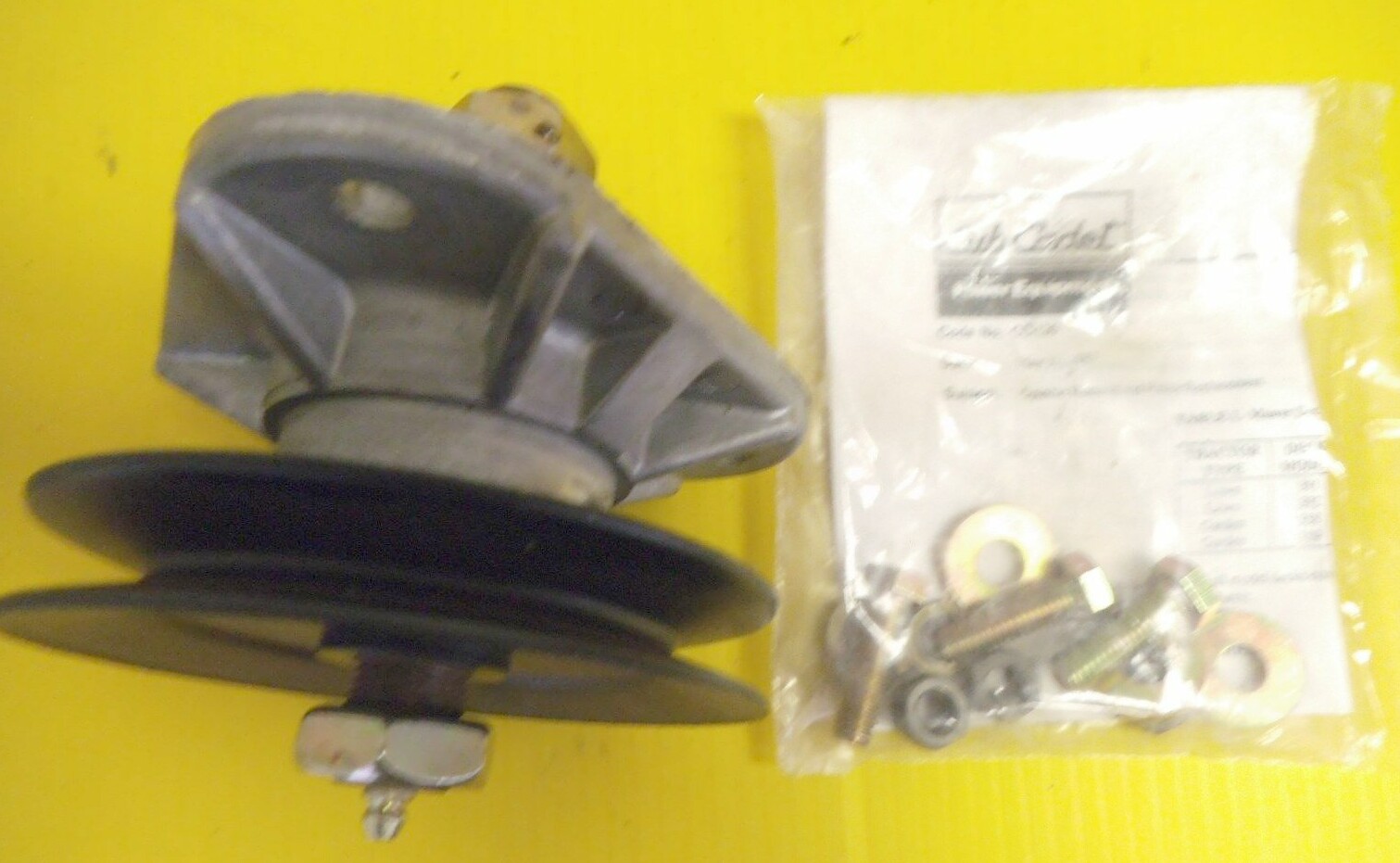

Spindle Assembly W/pulley PN/ 759-3293 USE 959-3293 Spindle Assembly W/pulley PN/ 759-3293 USE 959-3293

Fits,
318 44" Mower Garden Tractor Attach., 190-318-100
358 44C 44" Mower, 190-358-100
359 50C 50" Mower Garden Tractor, 190-359-100 GT
359 50C 50" Mower Super Garden Tractor, 190-359-100 SGT
391 36" Mower, 190-391-100
392 44" Mower, 190-392-100

$308.26

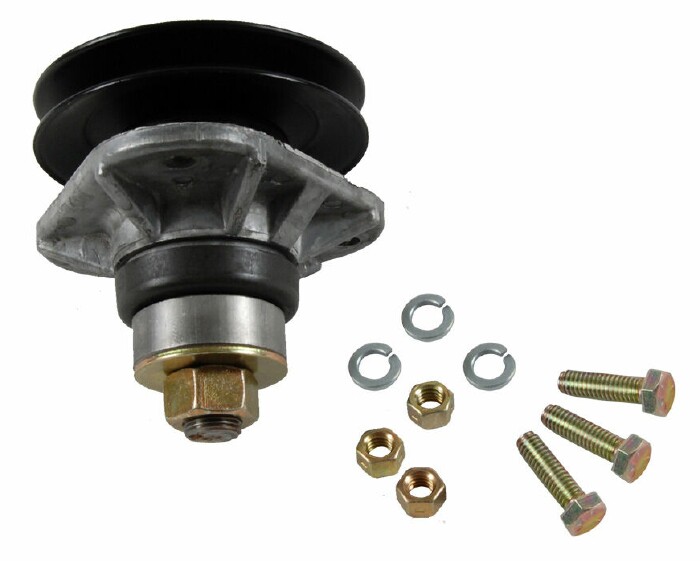

NOS Spindle Assembly W/pulley PN/ 959-3294, 759-3294P USE 759-3294

Fits LT 321 46" Mower deck, 328 38", 331 38", 336 46", 363 38", 441 38", 446 46" Mower

$302.65

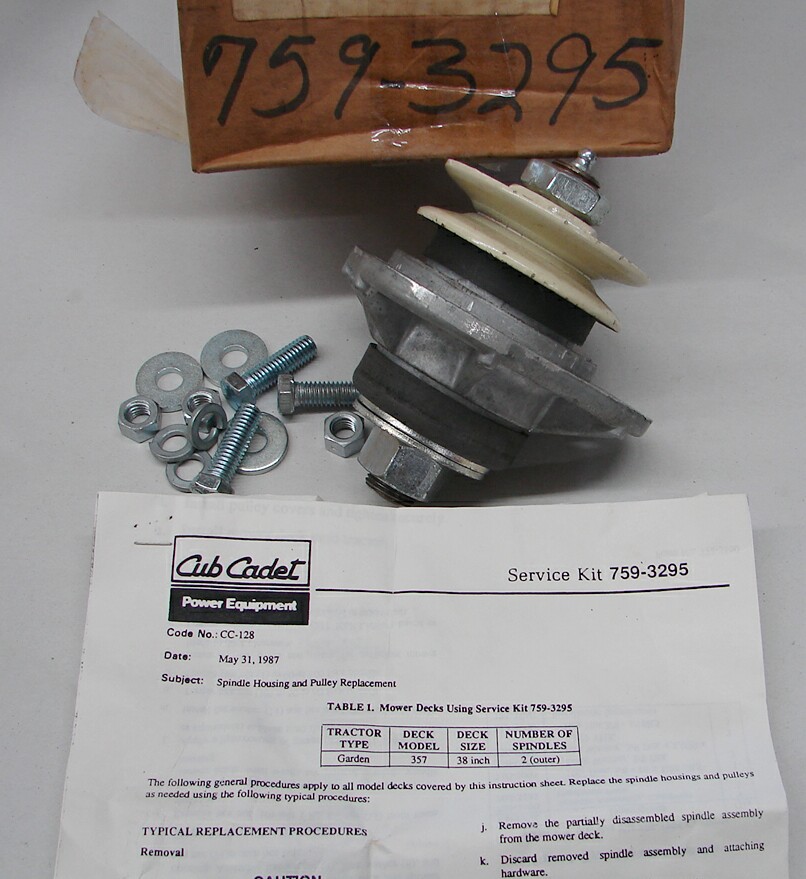

Spindle Assembly W/pulley PN/ 759-3295 USE 959-3295

Fits 357 38 In. Mower Deck 190-357-100

$302.65

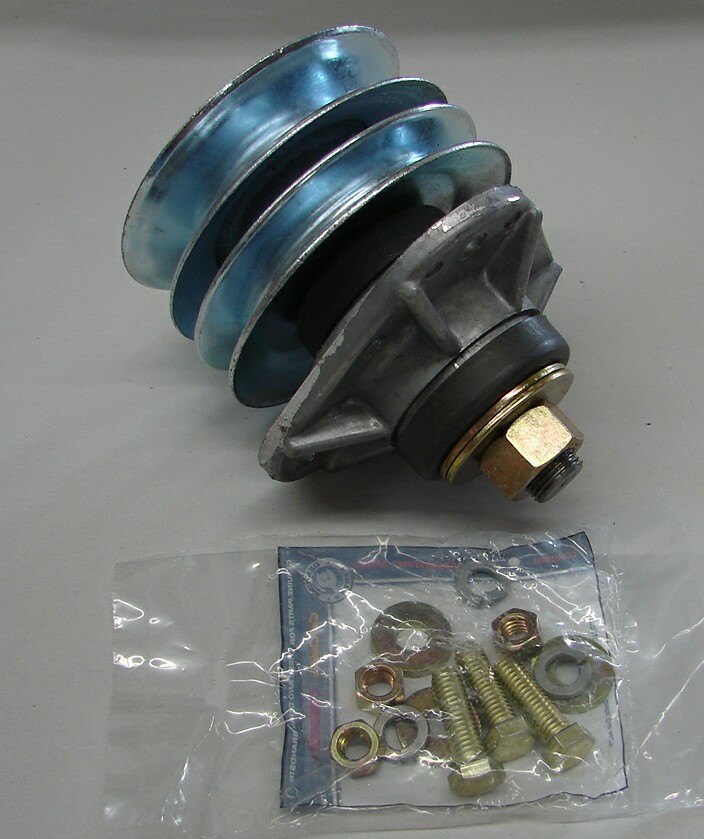

Spindle Assembly W/ double pulley PN/ 759-3367 USE 959-3367

Fits 44C, 50C decks.

$0.00

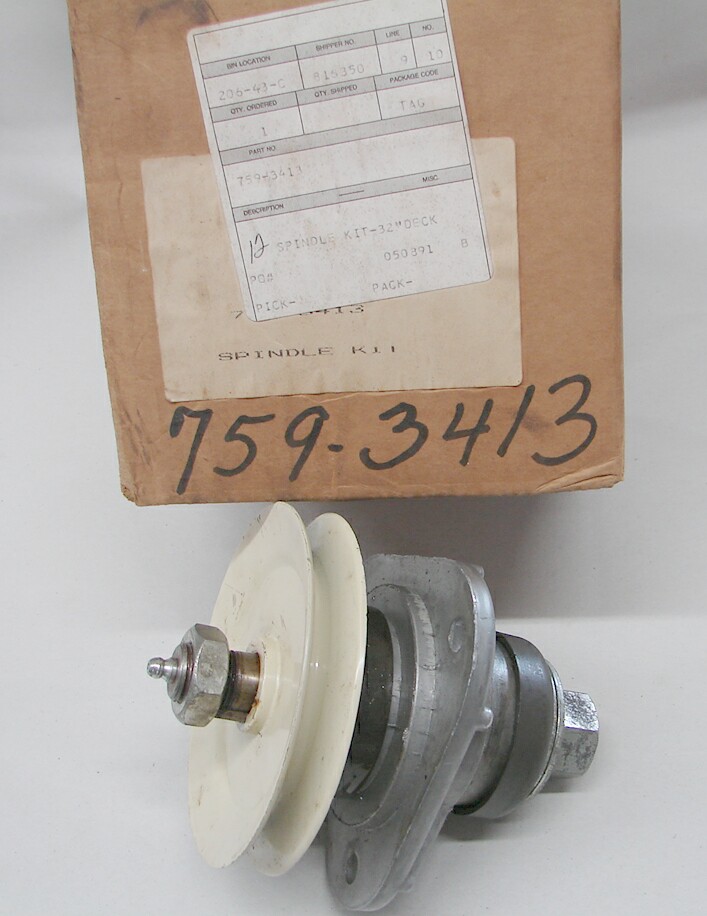

Spindle Assembly W/pulley PN/ 759-3413 959-3413

Fits 337 32 inch Mower, 190-337-100
345 32 inch Mower For GMT, 190D345-100

$208.00

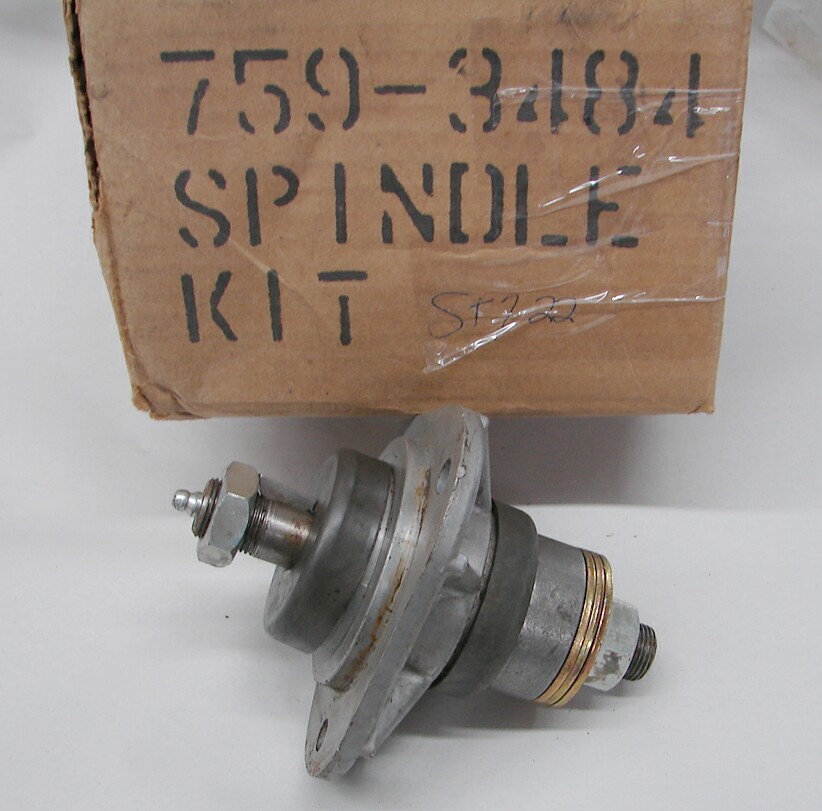

NOS Spindle Assembly W/O pulley PN/ IH-80415-C91 USE 759-3484, 959-3484

This assembly replaces the old style that took the ST722 and ST746 bearing

Fits 48" 1968 to 1971 decks.

$0.00

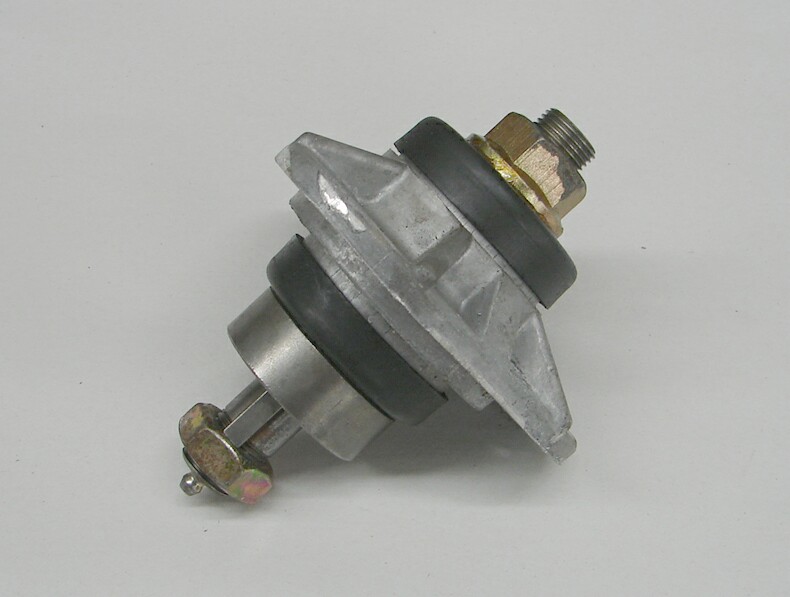

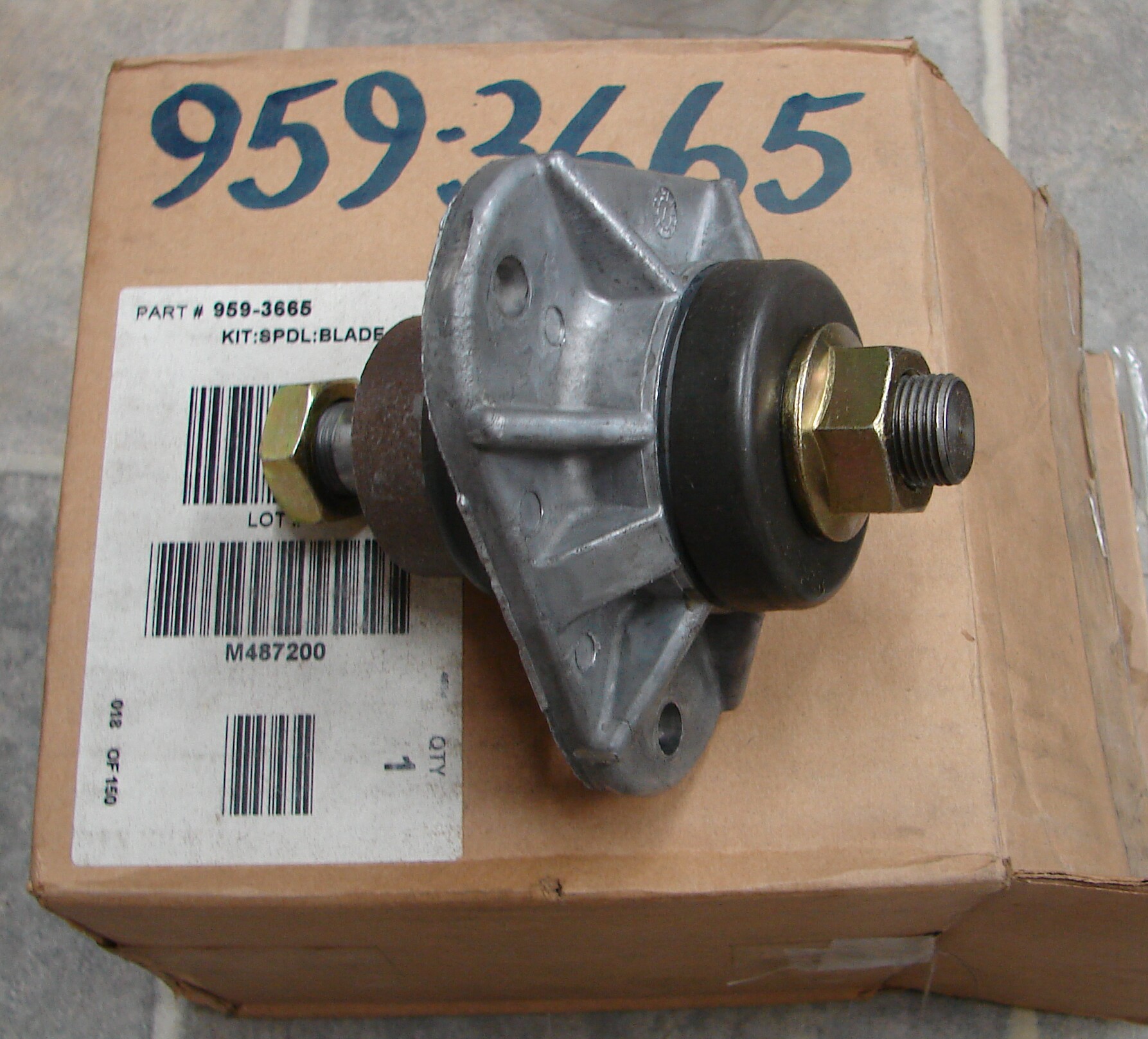

Spindle Assembly W/O pulley PN/ 759-3665 USE 959-3665 Spindle Assembly W/O pulley PN/ 759-3665 USE 959-3665

Fits 2130 2135 2140 2145 2150 2155 2518-48
289 48" Mower, 190-289-100
290 54" Mower, 190-290-100
300 46" Mower, 190-300-100
301 48" Mower, 190-301-100
317 48" Mower, 190-317-100
320 42" Mower Garden Tractor Attach., 190-320-100
324 54" Mower, 190-324-100
GT2186-48 Tractor, 13A-298M712, 13A-298M710
GT2521-48 Tractor, 13A-278M710

$274.00

48 62" & 3260 Mower Deck Spindle/Cup Assembly

PN/ IH 481093 R91 IH-481093 R92 USE IH-481093-R93

Measures 5" tall

$163.36

48 in. 62 inch and 3260 Mower Deck CENTER Spindle/Cup Assembly PN/ IH-543119-R1

Measures 7 1/4" tall

$200.00

38 AND 42 Mower Deck Spindle Cup Assembly PN/ IH-489389-R1

Measures 4 1/8" tall

$143.16

38 AND 42 Mower Deck Spindle Cup Assembly PN/ IH 473436 R92 USE IH-473436-R93

Measures 4 1/4" tall

$0.00

ST745 spindle IH - Mower Deck Ball PEER STR fitting bearing  PN/ IH ST745 ST-745 IH ST721

Fits 38, 38A, 38C, 42, 44, 44A, 44C, 50, 50A 50C  decks.

Alternate Part Numbers:
OEM P/N            OEM
     741-3001            Cub Cadet
                   741-3001            MTD Products Ltd.
                                         KKD7505TT1     BCA (Federal Mogul) John Deere
  ST745                 Case IH
                       KKD7505TT1     BCA (Federal Mogul)
                 KKD7505TT1     Riverside Tractor

$92.00

IH - Mower Deck Ball STR fitting bearing  PN/ IH-ST744 USE 741-3019 2 in Stock

Fits 55, 75, 85, 85 Special, 86, 87 Riding Mowers

With 28 and 32 inch decks

$110.00

Blade Spindle Assembly PN/ 717-0900 USE 917-0900A

Fits 804 and 1002 32" decks

$49.27

PN/

$0.00

PN/

$0.00

PN/

$0.00

PN/

$0.00
